Description

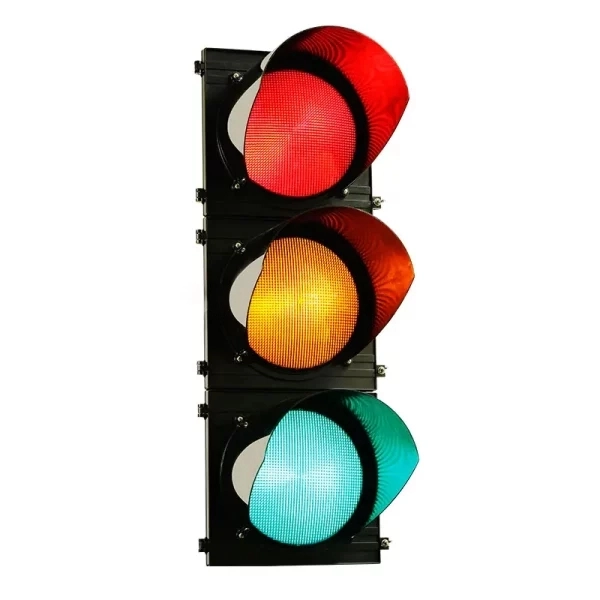

Available in 100mm, 200mm, 300mm, and 400mm sizes, the Hi Flux Traffic Signal System caters to diverse needs. Equipped with bright, energy-efficient LEDs, it guarantees clear visibility in all weather conditions. Constructed from durable, weather-resistant materials, it offers flexible installation options and low power consumption, making it perfect for sustainable traffic management.
Applications:
- Intersection Control: Efficiently manages vehicle and pedestrian movement at road intersections.
- Pedestrian Crossings: Guides both walkers and vehicles near crossings.
- Industrial Zones: Regulates vehicle flow in factories and industrial areas.
- Parking Areas: Controls vehicle movement in parking facilities and ramps.
Description

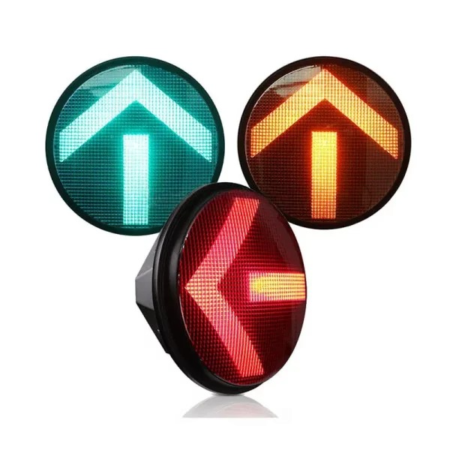

| 200mm Clear Lens RYG Arrow LED Traffic Light Parameter | |
| Diameter | φ 200mm |
| LED Type | 5mm DIP |
| Optical Performance | Conform to EN12368 standard |
| View Distance | ≥300m |
| Input Voltage | AC85V-265V, DC10-30V |
| Power Factor | ＞ 0.9 |
| Working Temperature | -40℃ ~ +80℃ (Class A,B,C acc. To EN12368) |
| Material of Lens/Housing | UV-stabilized polycarbonate |
| Color of Housing | Black – standard, fir-green/yellow upon qty request |
Packing
| 200mm Clear Lens RYG Arrow LED Traffic Light Packing Info | |
| Carton Size | 97*37*28cm |
| Quantity | 1set/carton |
| Net Weight | 8.5kg |
| Gross Weight | 9.8kg |
| Volume(M3) | 0.1 m³ |
Components
Parts:
